Model |

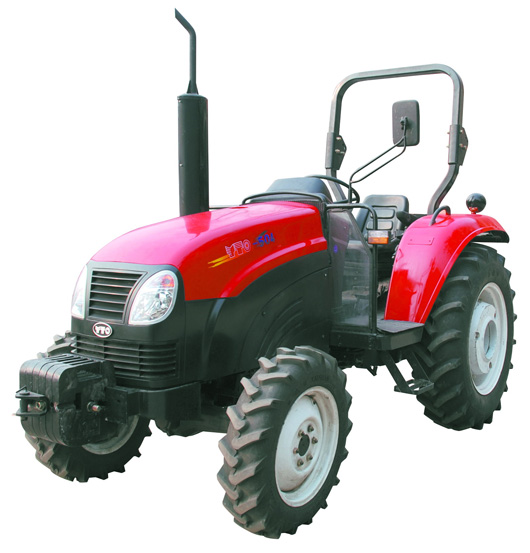

YTO-404 Tractor |
YTO-454 Tractor |
YTO-504 Tractor |
YTO-554 Tractor |
Diesel engine |
|
|
|
Model |
C490BT-8 |
A495BT-5 |
YT4A2-22 |
YT4A2-22 |
Type |
Four cylinder, vertical, water cooled, four stroke, direct injection combustion |
Four cylinder, vertical, water cooled, four stroke, direct injection combustion |
Four cylinder, vertical, water cooled, four stroke |
Four cylinder, vertical, water cooled, four stroke |
Displacement (L) |
2.54 |
2.98 |
4.15 |
4.15 |
Rated power / speed (Kw) / (r/min) |
29.4 / 2400 |
33.1 / 2300 |
36.8 / 2200 |
40.4 / 2200 |
Max. torque (N.m) / speed (r/min) |
158 / 1680 |
169 / 1725 |
195 / 1650 |
214 / 1650 |
Bore x stroke (mm) |
90 x 105 |
95 x 105 |
105 x 120 |
105 x 120 |
Transmission |
|
|
|
Gear shift, forward / backward |
8/4 |
8/4 |
8/4 |
8/4 |
Speed range (Km/h), forward / backward |
2.37-31.06 / 3.52-10.74 |
2.47-32.38 / 3.66-11.18 |
2.37-31.06 / 3.52-10.74 |
2.47-32.38 / 3.66-11.18 |
PTO power (Kw) |
26.5 |
29.5 |
32.7 |
36.7 |
PTO rotation speed (r/min) |
540 / 720 or 540/ 1000 |
540 / 720 or 540/ 1000 |
540 / 720 or 540/ 1000 |
540 / 720 or 540/ 1000 |
Clutch |
10-inch,dry,double action |
10-inch,dry,double action |
10-inch,dry,double action |
11-inch,dry,double action |
Implement |
|
|
|
Three-point linkage category |
Rear three-point linkage I |
Rear three-point linkage I |
Rear three-point linkage I |
Rear three-point linkage I |
Tilling depth control mode |
Combined draft, position control and floating control |
Combined draft, position control and floating control |
Combined draft, position control and floating control |
Combined draft, position control and floating control |
Lifting force (KN) |
6.6 |
8 |
8.3 |
9 |
Options |
|
|
|
Cab |
Frame construction, streamlined shape, with fan |
Frame construction, streamlined shape, with fan |
Frame construction, streamlined shape, with fan; air conditioning system is optional. |
Frame construction, streamlined shape, with fan; air conditioning system is optional. |
Transmission with shuttle-type gear |
4x2x2 |
4x2x2 |
4x2x2 |
4x2x2 |
Transmission with creeper gear |
4x(2+1)x2 |
4x(2+1)x2 |
4x(2+1)x2 |
4x(2+1)x2 |
Luxury integral panel |
All-in-one instrument panel, glass guard plate |
All-in-one instrument panel, glass guard plate |
All-in-one instrument panel, glass guard plate |
All-in-one instrument panel, glass guard plate |
Hydraulic output |
1 or 2 group |
1 or 2 group |
1 or 2 group |
1 or 2 group |
Adjustment mode, rear wheel |
Stepless adjustment |
Stepless adjustment |
Stepless adjustment |
Stepless adjustment |
Dimensions, mass, drive |
|
|
|
Drive type |
4x4 |
4x4 |
4x4 |
4x4 |
Overall dimensions (LxWxH) (mm) |
3727x1630x2375 |
3742x1640x2405 |
3910x1745x2545 |
3910x1745x2565 |
Wheelbase (mm) |
1965 |
1970 |
2063 |
2127 |
Min. ground clearance (mm) |
270 |
350 |
350 |
350 |
Min. operating mass (with safety stand) (Kg) |
1990 |
2070 |
2326 |
2380 |
Tyre spec. front / rear |
7.5-16 / 11.2-28 |
8.3-20 / 12.4-28 |
8.3-20 / 12.4-28 |
8.3-20 / 13.6-28 |
Wheel tread, front / rear |
1250 / 1300, 1400, 1500, 1600 |
1285 / 1300, 1400, 1500, 1600 |
1250 / 1300, 1400, 1500, 1600 |
1250 / 1300, 1400, 1500, 1600 |
Steering |
Full hydraulic |
Full hydraulic |
Full hydraulic |
Full hydraulic |
Brake |
Disk type, mechanical |
Disk type, mechanical |
Disk type, mechanical |
Disk type, mechanical |
